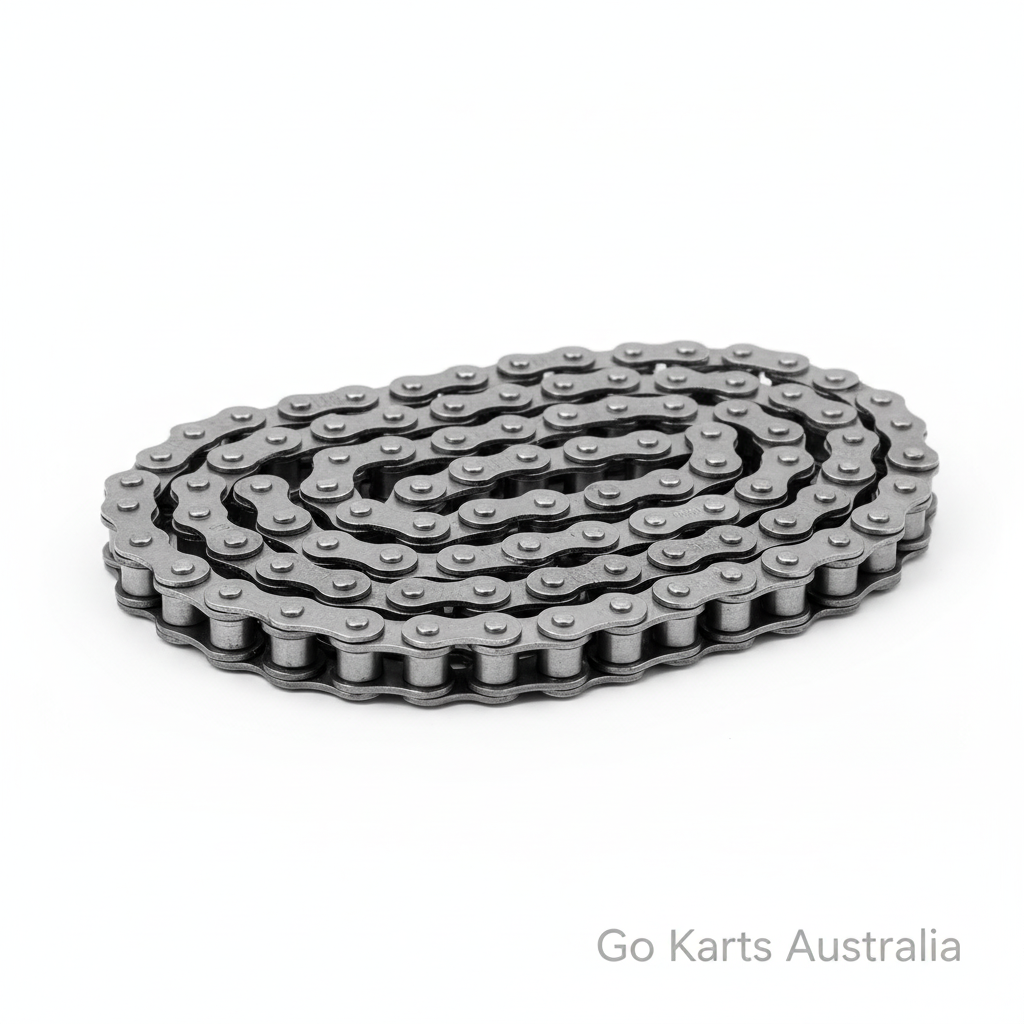

Chain Drive Roller 420 pitch length to order 100 mm approx 4 links

Drive Chain cut to length and sold by the 100 mm (10 cm) approx 4 links

Standard length of chain normally 30 links 770 mm long  420 Pitch

I have noticed some Karts require longer length chain so I now stock it by the roll and I stock chain joiners to suit

Chain drive for 6.5 hp go karts

Chain Pitch Centre Pin    12.45 mm

Roller diameter          7.66 mm

Roller width               6.64 mm

Pin Thickness           3.93 mm

Side Bar Thickness     10.21 mm

Side Bar Thickness     1.45 mm
