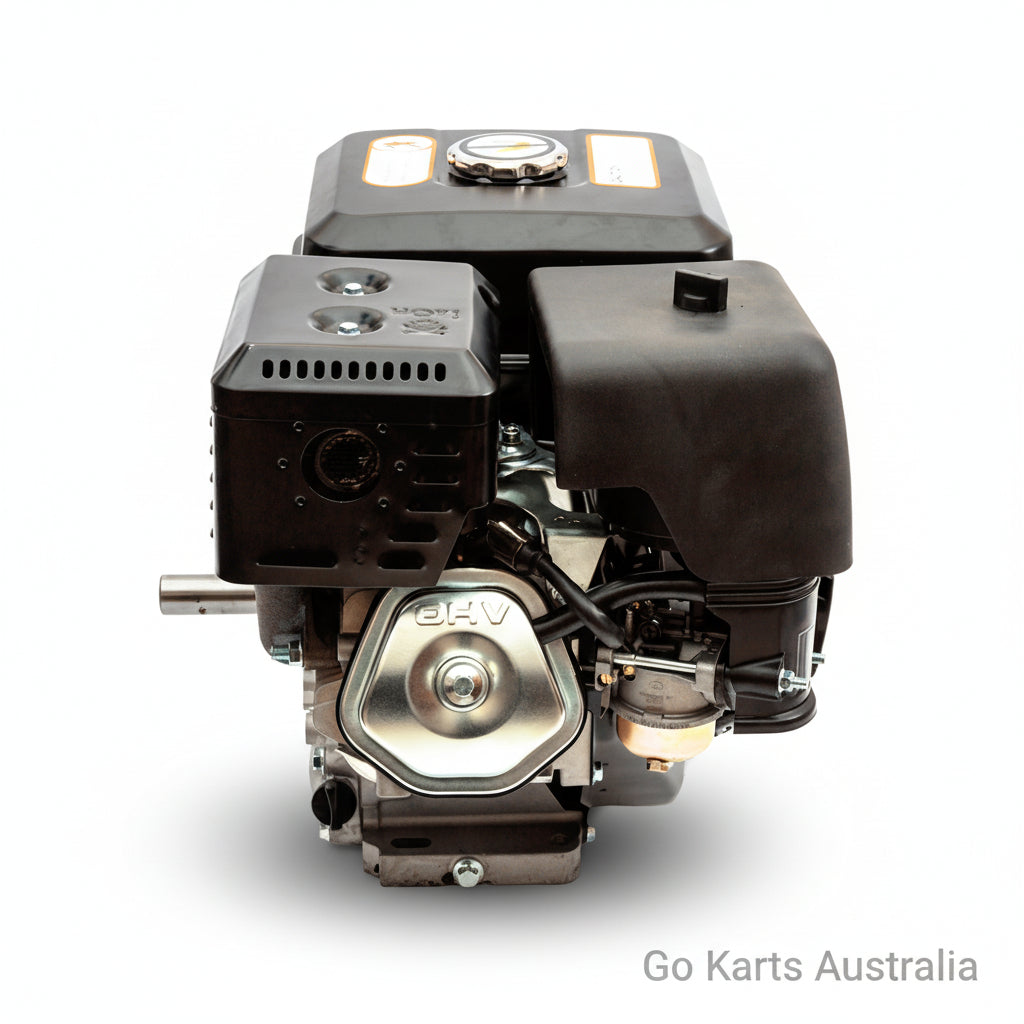

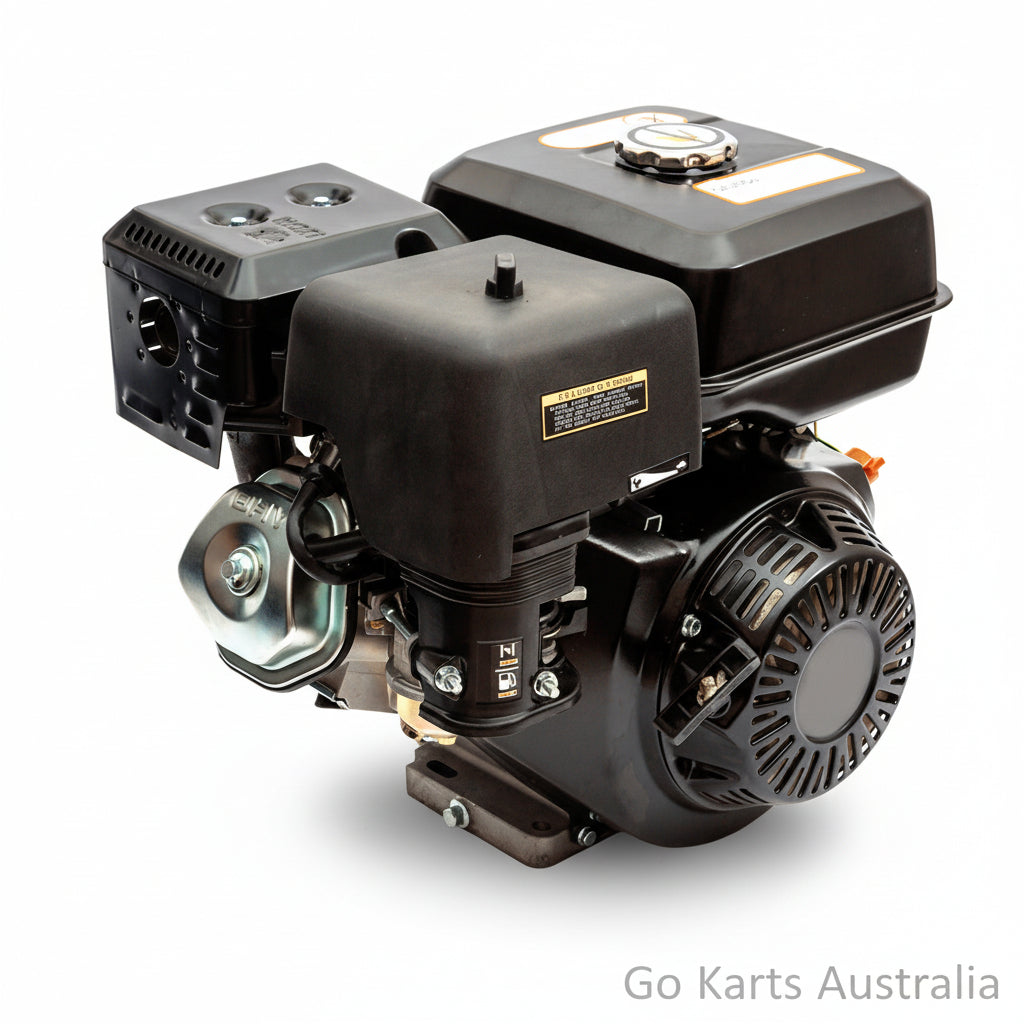

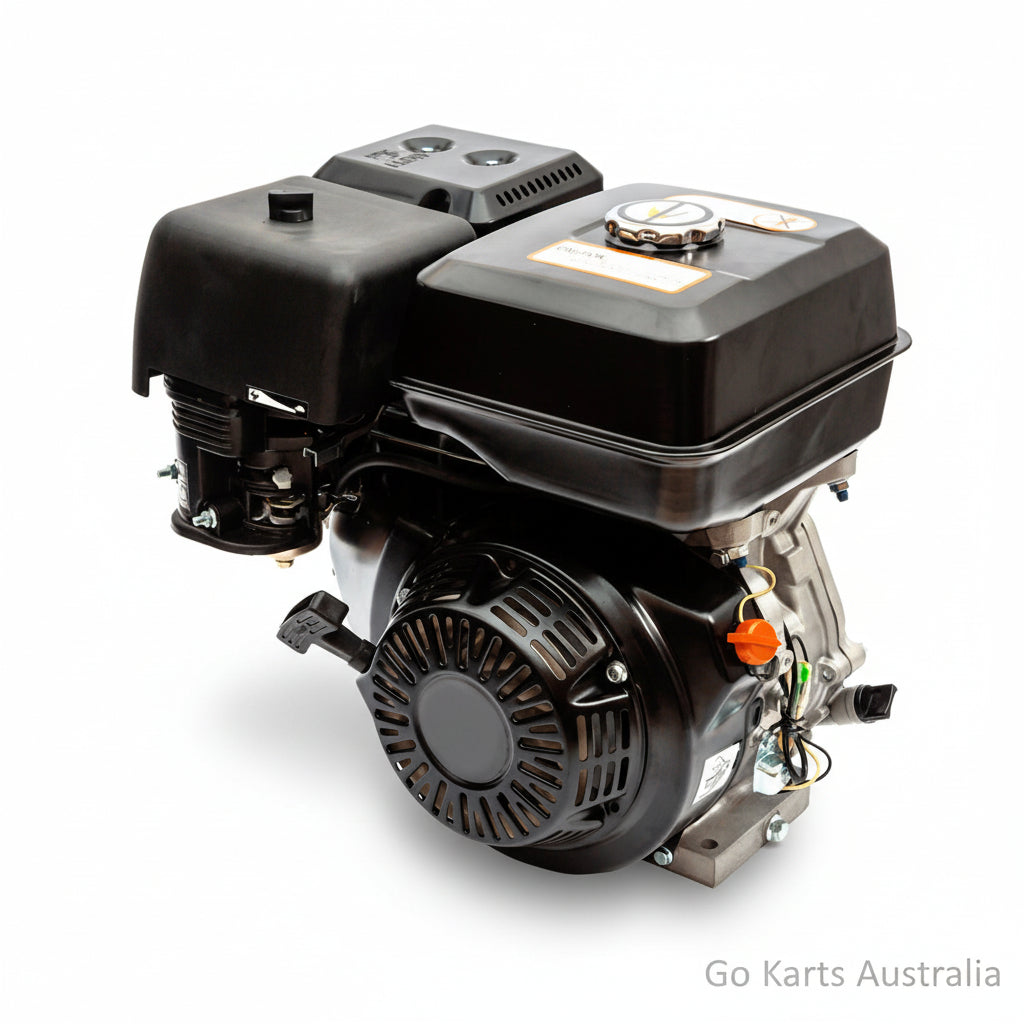

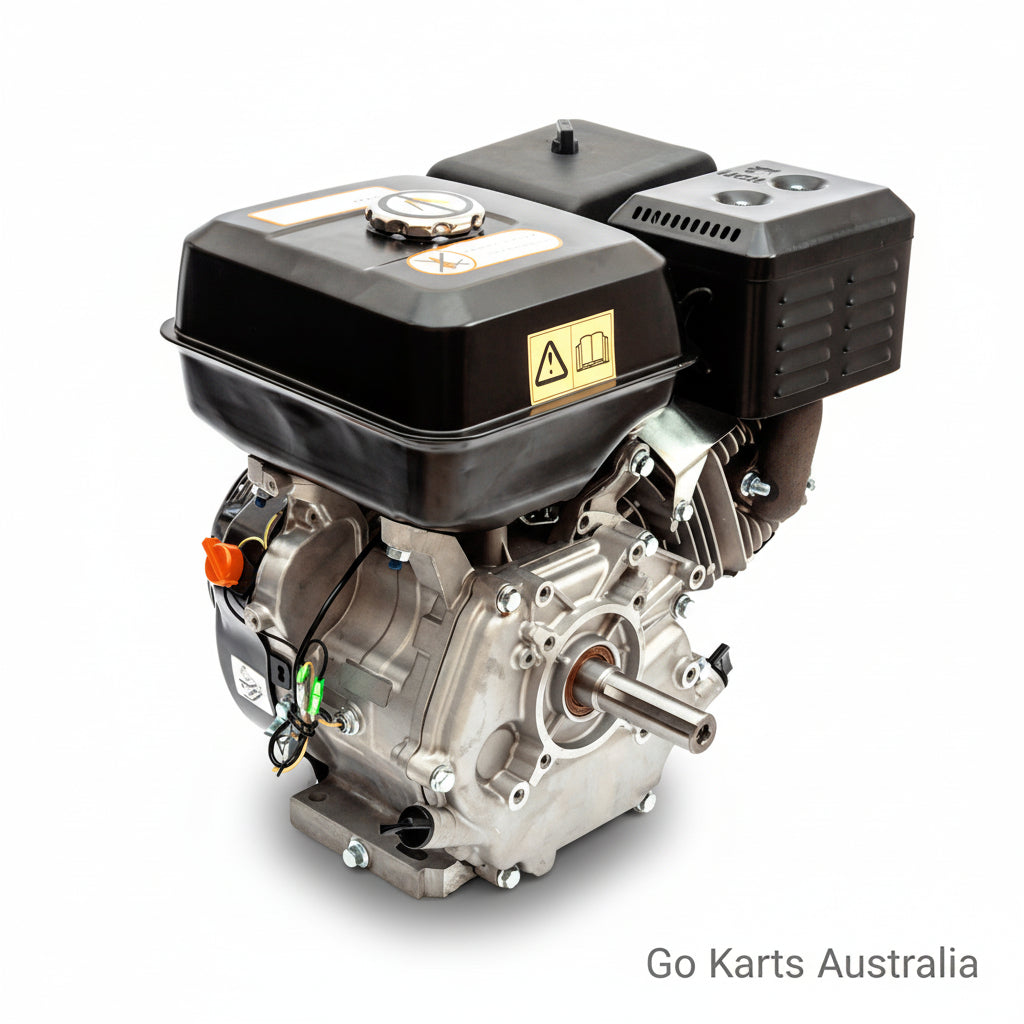

This 9hp 270cc engine delivers reliable power for go-kart builds and upgrades. Featuring a 4-stroke design with pull-start ignition and unleaded fuel compatibility, it's engineered for consistent performance. Note: this engine comes without a wet clutch, so plan your drivetrain setup accordingly. Ideal for builders seeking a proven powerplant for custom kart projects. Contact Go Karts Australia on 0457 156 546 or team@gokartsaustralia.com.au for freight quotes, or visit our Sunshine Coast showroom for collection.
| Max Power Output |
9hp/3600rpm (Governed to 1800rpm) |
| Displacement |
270cc |
| Bore x Stroke (mm) |
77 x 58 |
| Max Torque |
18.5 Nm at 2600rpm |
| Ignition System |
Transistor Electric / Inductive Firing |
| Starting System |
Recoil |
| Fuel Tank Capacity |
6L |
| Oil Capacity |
1.1L |
| Fuel Consumptio |
374g/kw.h |
| Air Cleaner |
Semi dry, dual filter |
| Shaft Diameter |
25mm |
| Shaft Length |
64mm |
| Shaft Keyway |
Yes, key included |
| Gearbox Output Shaft Diameter |
7/8'' (22.2mm) |
| Keyway Length |
60mm |
| Keyway Width |
6mm |
| Distance from Base to Centre of Output Shaft |
134mm |
| Shaft Rotation |
Anti-clockwise (from output) |
| Weight |
30kg |
