Our range of spare parts and accessories to suit Off Road Drift II Go Karts. A variety of parts for many models of Go Karts

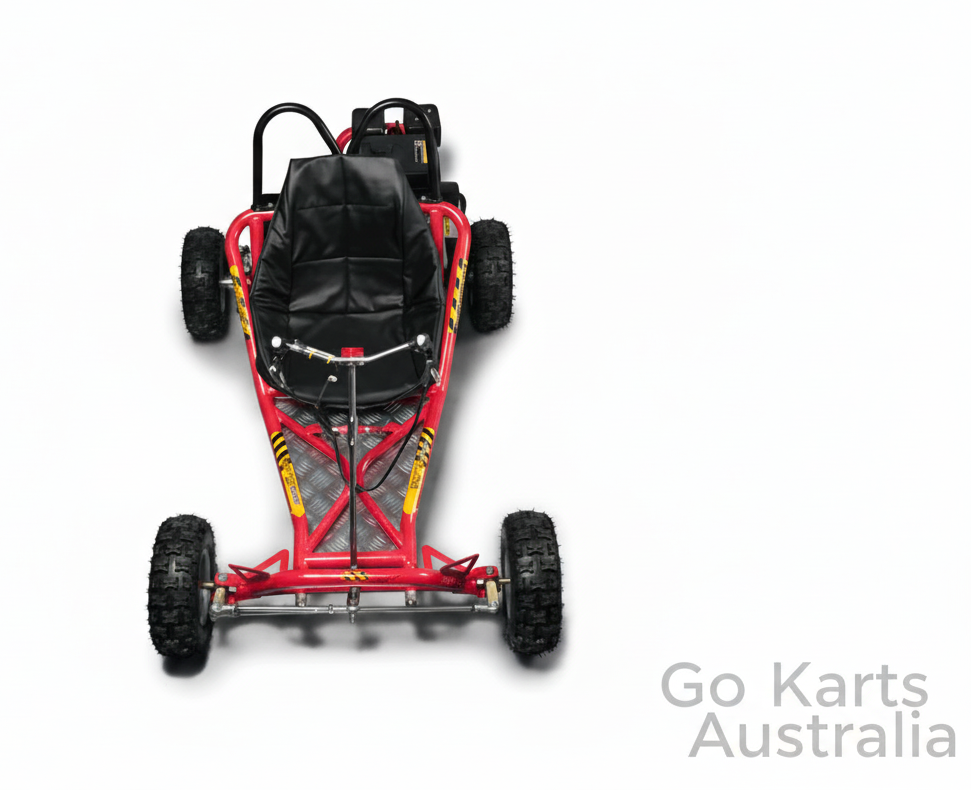

RED GO KART
Note this is for a RED coloured Go Kart with latest EPA engine & torque Converter
The standard but most popular Go Kart. Great for the kids yet the adults can still jump on and have a go. It has a 6.5 hp 196 cc 4 stroke engine with pull start. It has a TORQUE CONVERTER, uses unleaded fuel and has a top speed of approx. 35 to 45 km. This model has hydraulic disc brakes and a butterfly steering wheel with lever throttle and brake controls. The engines can be governed to reduce the top speed if required. This model is ideal for the younger children, allowing slower speeds without over heating the clutch
Please contact me for a freight quote on 0422097800 or firstname.lastname@example.org or the cart can be collected from my store
Box Dimensions 85 kg 110 cm x 98 cm x 53 cm
Centrifugal Dry Clutch 10 tooth sprocket, fits a 19 mm shaft, diameter 110 mm, Length of centre shaft bush 59 mm and the internal clutch springs can be replaced
- The friction material & arrestor spring(s)
- The transmission plate & central shaft. (central shaft not shown. Picture below shows friction material and spring installed)
In the picture above you can see the friction material installed onto the transmission plate. You can see the transmission plate splines in the centre of the plate. The central shaft (not shown) slots into these splines and slides onto the crankshaft of the engine. It rotates with the engine because it is keyed and the key slots into the keyway on the crankshaft.
The drum sits over this material and is large enough so that the material does not contact the drum when it is fitted. You can rotate the drum freely when the unit is assembled as the friction material does not contact the drum.
As the speed of the crankshaft rotation increases (RPM increases) there is more and more centrifugal force on the friction material.
The spring holds them together in a tight circle and they do not touch the drum.
As the force pushing the friction material away from the centre increases to a point that it is greater than the force applied by the spring, the friction material starts to move outwards and contacts with the drum.
This begins to happen somewhere between 1500rpm and 1800rpm on the standard DRY CLUTCHES. At this point, the drum is still slipping on the friction material because the amount of force is not great enough to overcome the friction from the back wheels. The more weight, the more friction. When the drum slips, it creates heat. This is the biggest CON for the Dry Centrifugal Clutch.
NOTE: DRY CLUTCHES SHOULD NOT BE IDLED!
ONE MORE IMPORTANT THING TO NOTE IS THAT AFTER THE FIRST USE, SOME HEAT WILL INEVITABLY BE TRANSFERRED TO THE SPRING AND IT WILL STRETCH SLIGHTLY. FROM THIS POINT ON, AT IDLE, THE CLUTCH WILL SLOWLY BEGIN TO ENGAGE AT IDLE SPEED - THE HIGHER THE IDLE SPEED, THE MORE THE ENGAGEMENT WHICH WILL ACCELERATE WEAR.
At 2000rpm the friction material has so much centrifugal force applied to it that the spring can no longer arrest the material and it completely contacts the drum. This is considered it's FULLY ENGAGED rpm. Power is now transmitted directly through the chain to the rear drive sprocket and no further heat is created.
Throttle Accelerator cable for the butterfly steering wheel Go Cart
Approximate length 180 cm Outer Cable
For Drift II Go Karts
